Overview
This was a project i made with HackClub.
The event was: "Design a pcb for a micropad, and recieve the parts for it"

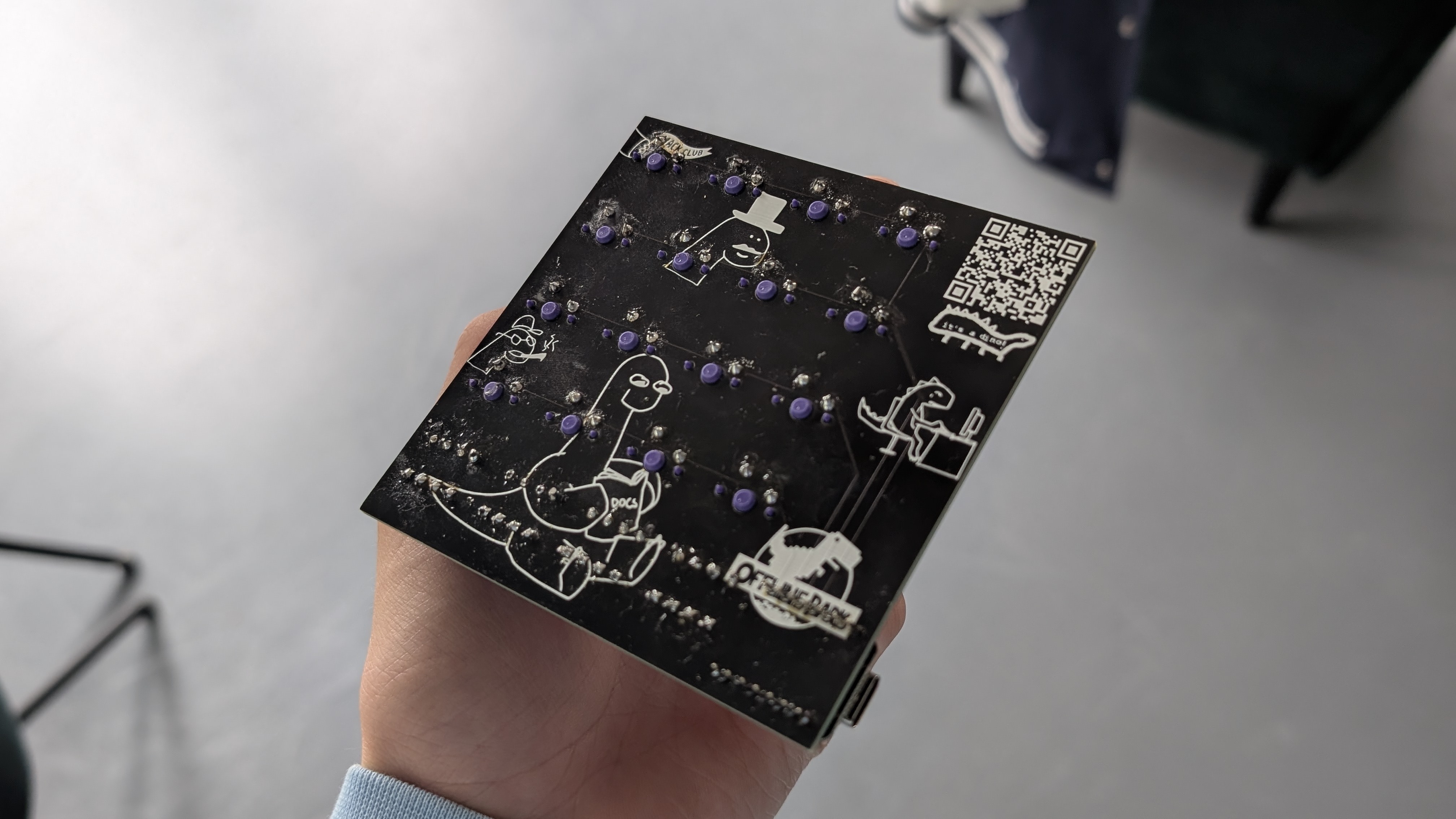

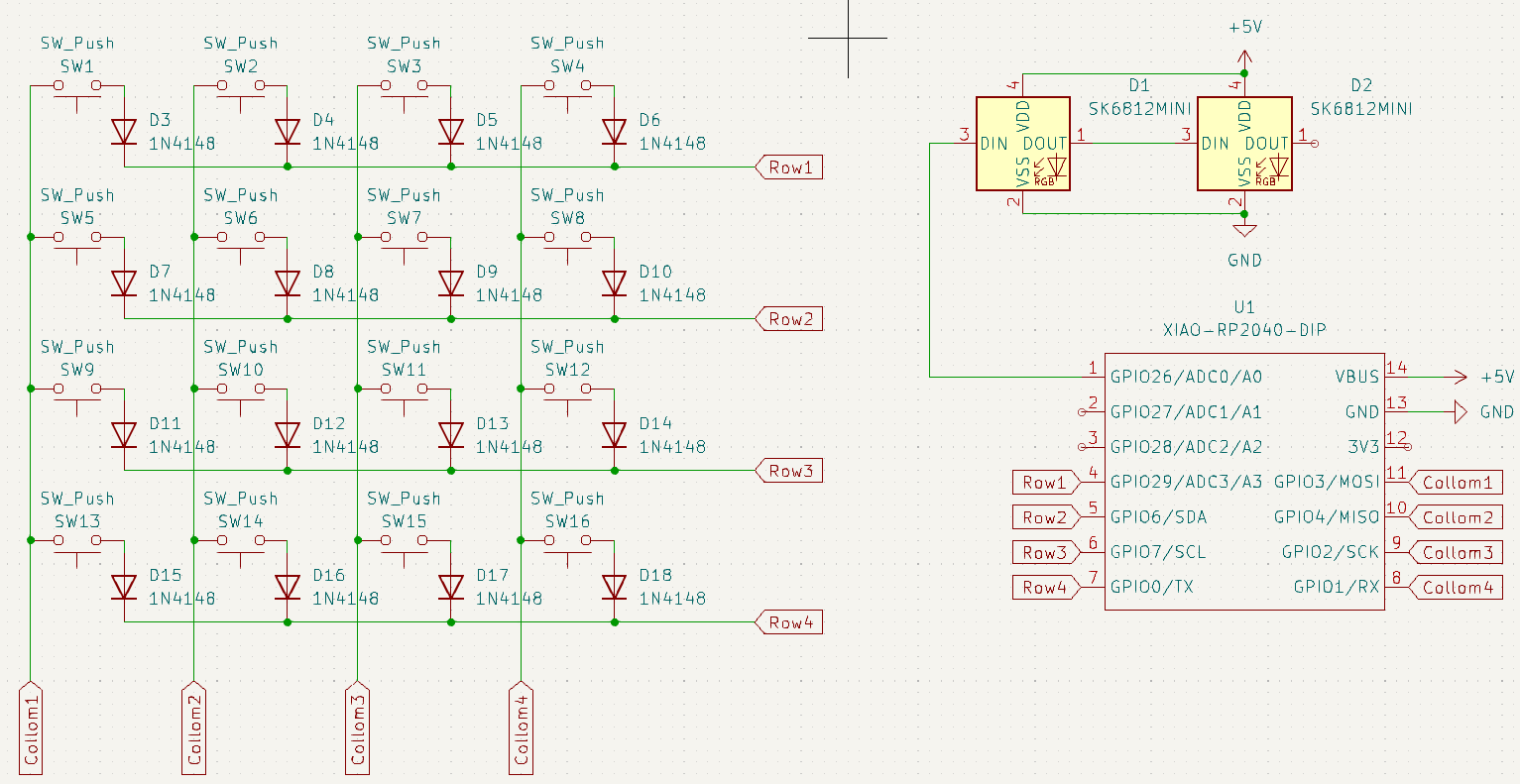

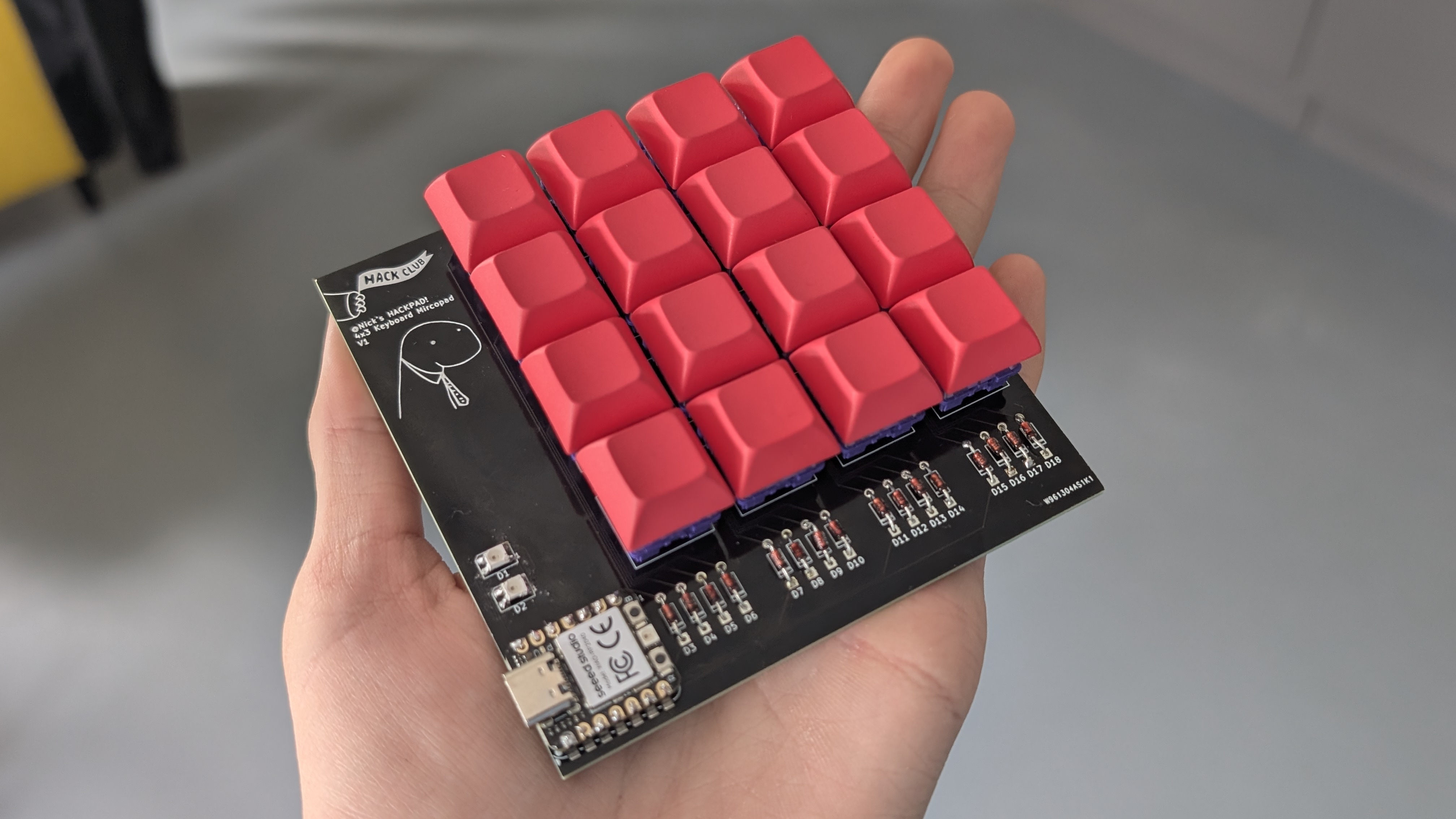

I made a pcb with a 4x4 matrics of Cherry MX Switches.
Find more information in my github repo here

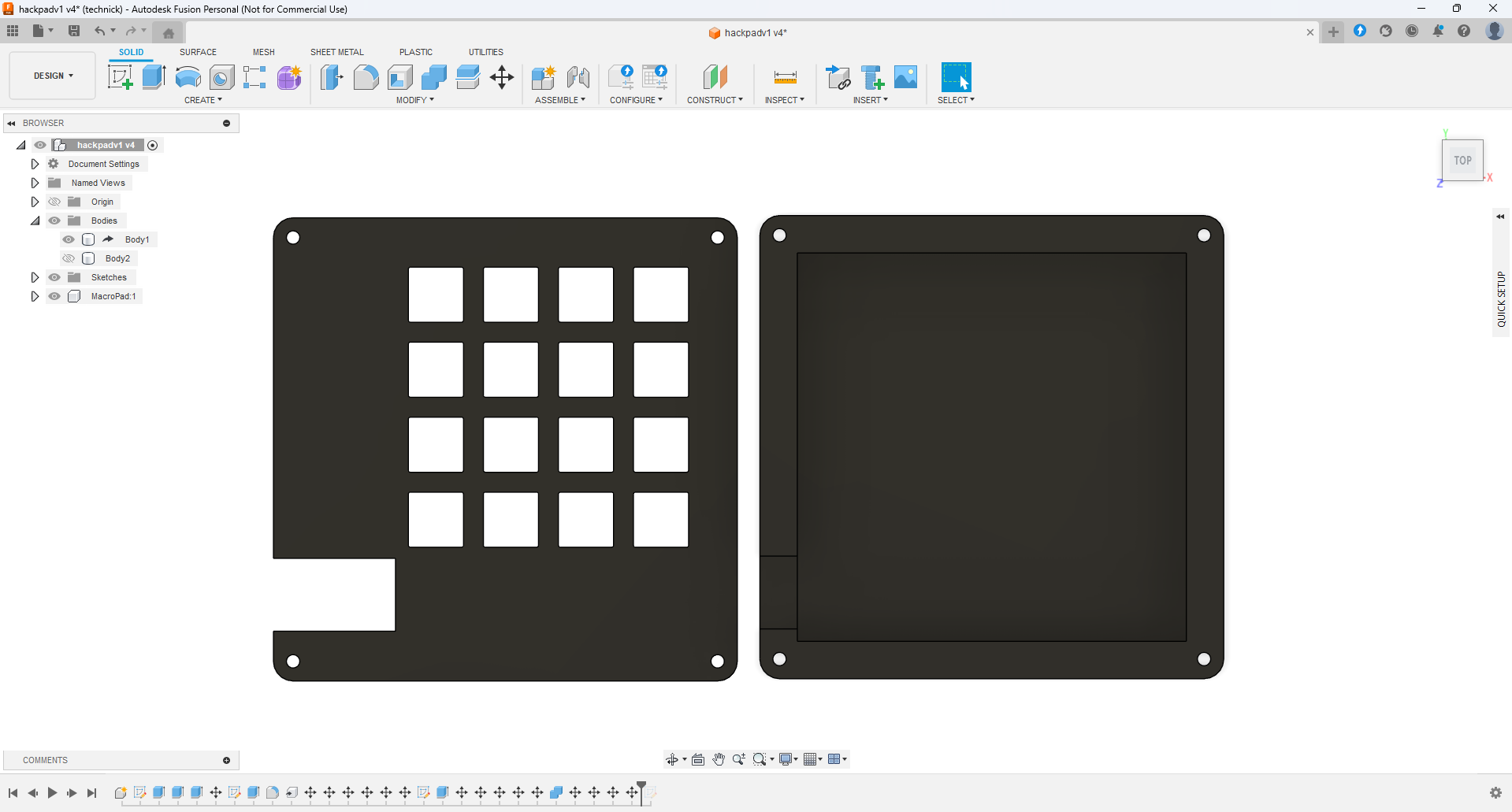

I also made a Case for it in fusion 360,
this all took me only 1 days of work.
I solderd this together with my grandpa, he teatched me how to solder.
and after only an hour or 2, I had a finished board.
Then came the programming.
and with support from chatGPT i had it working on notime.
BOM
- 2x SK6812 MINI Leds
- 1x XIAO RP2040
- 16x Blank DSA Keycaps
- 4x M3x16mm Bolt
- 4x M3 Heatset
- 16x 1N4148 Diodes
feel free to copy the files, modify it and make your own.
