Aangepast invoerapparaat — Gebouwd
MYMacropad
Een 4×4-macropad, van PCB en firmware tot behuizing, switches en soldeerwerk.
Rol
Product design, electronics and firmware
Tools
Custom PCB, Firmware, Mechanical switches, 3D enclosure
Status
Gebouwd
De uitdaging
The goal was to make a compact input device as a complete object, not just wire switches to a development board. The electrical layout, firmware, case and physical switch spacing all had to agree.
De aanpak

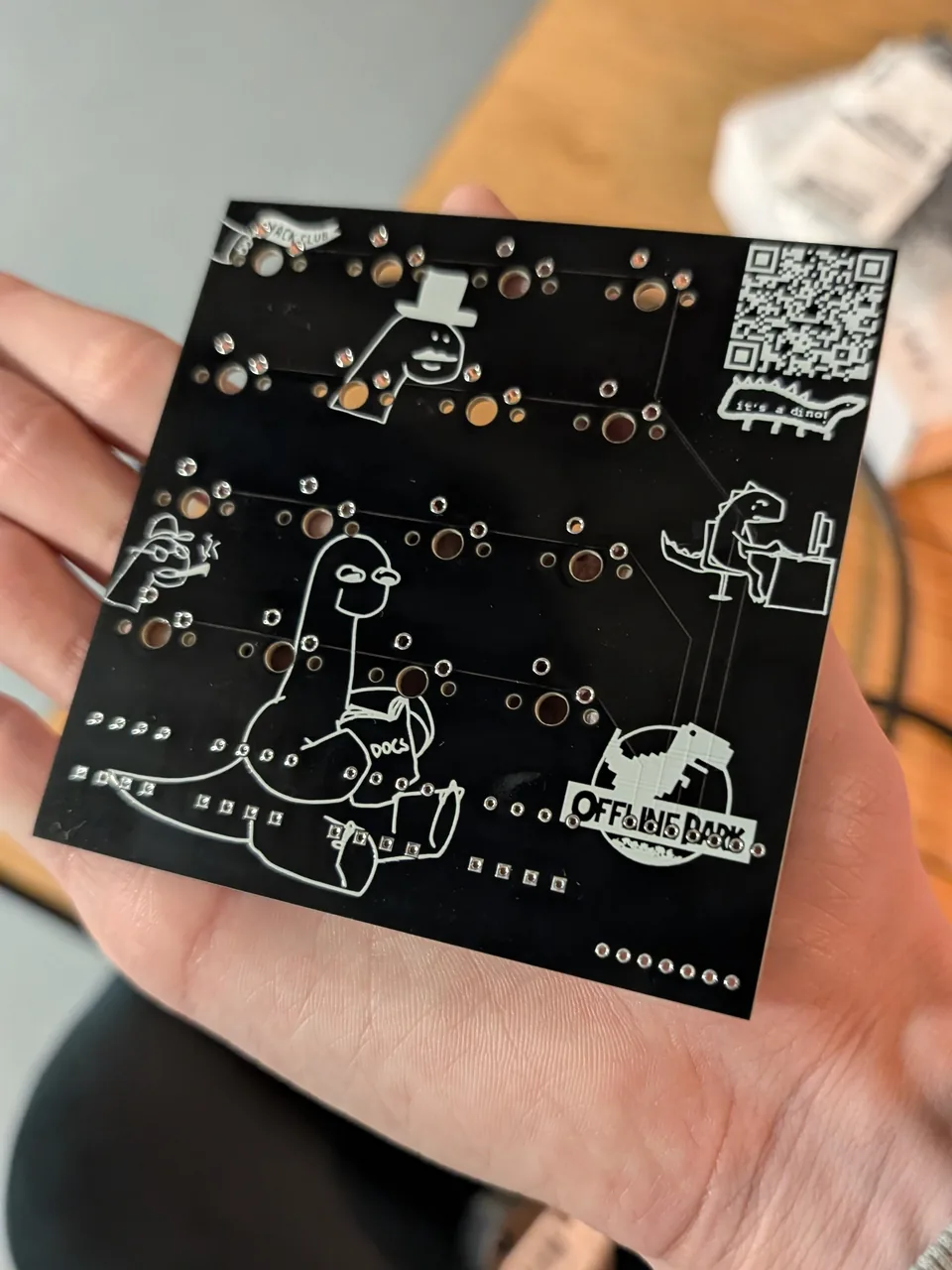

I designed the 4×4 layout, produced a custom PCB with its own back artwork, assembled and soldered the electronics, and fitted the result into a purpose-built enclosure. Working across the whole stack made small mechanical and electrical decisions immediately visible in the final feel of the device.
Het resultaat
MYMacropad is a finished, working piece of hardware. The build shows the complete progression from bare custom board to assembled electronics and the final blue enclosure with coral keycaps.
